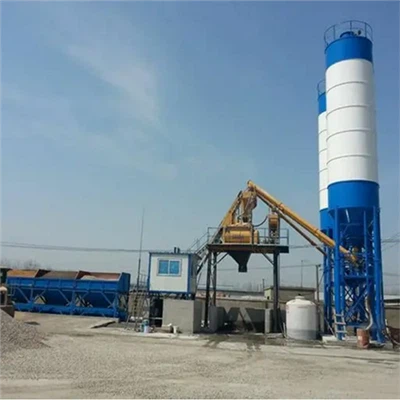

Mobile cog pob zeb
Lub pob zeb txawb, tseem hu ua mobile batching plant lossis mobile pob zeb batching cog, yog ib hom tshwj xeeb ntawm cov cuab yeej siv rau kev sib xyaw thiab tsim cov pob zeb ntawm qhov chaw. Nws yog tsim los kom tau yooj yim thauj los ntawm ib qho chaw mus rau lwm qhov, tso cai rau kev yooj yim thiab kev ua haujlwm ntawm cov pob zeb ntau lawm ntawm ntau qhov chaw tsim kho lossis cov haujlwm.
Cov ntsiab lus tseem ceeb ntawm ib qho kev cog lus txawb txawb muaj xws li:
Aggregate Bins: Cov thawv no khaws ntau yam sib xyaw xws li xuab zeb, gravel, thiab pob zeb crushed, uas yog siv los ua cov khoom xyaw hauv cov pob zeb sib xyaw.
Cement Silos: Cement silos khaws cov cement, uas yog ib qho tseem ceeb hauv kev tsim cov pob zeb.
Cov Dej Tank: Cov dej tso dej cia cov dej siv rau kev sib xyaw nrog cov cement thiab aggregates los ua pob zeb.
Admixture Tanks: Admixture tanks khaws cov khoom siv ntxiv lossis cov khoom sib xyaw uas yuav muab ntxiv rau cov pob zeb sib xyaw kom txhim kho nws cov khoom lossis kev ua haujlwm.
Weighing System: Lub qhov hnyav ntsuas ntsuas qhov ntau ntawm cov khoom sib xyaw, cov cement, dej, thiab cov khoom sib xyaw uas xav tau rau txhua pawg ntawm pob zeb.
Tov Khoom: Lub tov khoom yog lub hauv paus tseem ceeb ntawm cov nroj tsuag uas cov khoom sib xyaw ua ke thiab sib xyaw ua ke los tsim cov pob zeb.
Control System: Lub kaw lus tswj xyuas thiab tswj cov txheej txheem sib xyaw, ua kom ntseeg tau zoo thiab ua tau zoo ntawm cov pob zeb.
Parameters ntawm mobile cog pob zeb
| Qauv |
YHZS 35
|
YHZS 50
|
YHZS 90
|
YHZS 120
|
| Muaj peev xwm (M³ / H) | 25m³/h | 35m³/h | 60m³/h | 90m³/h |
| Mixer Qauv | JS 750 | JS 1000 | JS1500 Nws | JS 2000 |
| Cia Hopper Capacity (M³) | 2*5m³ | 2*7m³ | 3*10m³ | 4*12m³ |
| Mixing zog (KW) | 22 | 2*18.5 | 2*22 | 2*37 |
| Aggregate Accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cerement Accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Qhov tseeb ntawm dej (%) | ±1 | ±1 | ±1 | ±1 |
| Fly Ash Accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive Accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Tag nrho lub zog (KW) | 65 | 90 | 135 | 150 |
| Tawm qhov siab (MM) | 3800 | 3800 | 3800 | 3800 |
Lub hwj chim, dej, thiab pneumatic system pipelines ntawm mobile cog pob zeb yog feem ntau ntsia thaum lub Hoobkas tsim khoom. Qhov no tuaj yeem txuag tau ntau lub sijhawm teeb tsa thiab txo lub sijhawm teeb tsa ntawm cov khoom siv txawb. Txhim kho pob zeb sib xyaw cov nroj tsuag tuaj yeem teeb tsa tsis pub dhau 14-21 hnub, thaum mobile pob zeb sib xyaw cov nroj tsuag tuaj yeem nruab tsis pub dhau 5-10 hnub.
Peb Cov Neeg Koom Tes
Red Star tshuab nrog lub koob npe nrov, zoo heev thiab kev pab cuam tom qab muag kom yeej lub ntiaj teb qhuas, nyob rau hauv ntau lub tsev lag luam thiab txawv teb chaws ci!
Cov ntawv pov thawj
Tsim kom muaj kev daws teeb meem rau kev ua haujlwm zoo ntawm tib neeg tub sab nyiag
Daim ntawv pov thawj CE
CQC daim ntawv pov thawj
Daim ntawv pov thawj ISO
Daim ntawv pov thawj SGS
Daim ntawv pov thawj PATENT
TRADEMARK
vim li cas xaiv peb
Peb muab ntau yam mobile cog pob zeb
vim li cas thiaj xaiv peb cov pob zeb ua batching cog
Cov txheej txheem ntau lawm
Raw khoom sandblasting thiab xeb tshem tawm - laser txiav - nruj me ntsis raws li cov duab kos rau ntau lawm - ib txheej ntawm primer thiab peb txheej ntawm topcoat
Zoo siab thiab tus nqi qis
Tus nqi suav yog raws li qhov hnyav ntawm cov khoom siv raw (T / * USD), nrog rau 3% tus nqi pabcuam rau cov khoom yuav khoom thiab tsim qauv dawb
Peb lub Hoobkas
Jinheng Machinery muaj ob lub hauv paus loj hauv Zhengzhou thiab Qingdao, nrog rau kev cob qhia ntau lawm ntawm 350000 square meters. Nws muaj cov khoom siv machining xws li sandblasting tshuab, laser CNC tshuab cuab yeej, drilling tshuab, tsis siv neeg vuam robots, thiab hluav taws xob CNC dov cav tov.
Raws li tus neeg muag khoom txhim khu kev qha rau 1920 cov neeg siv khoom hauv kev lag luam sib xyaw, Jinheng Machinery muab cov cuab yeej siv European sib xyaw thiab cov txheej txheem tsim qib siab; Peb tau tsim ntau tshaj 20 cov kab ntau lawm, suav nrog ib tiam tshiab ntawm cov pob zeb sib xyaw, cov nroj tsuag sib xyaw, thiab cov pob zeb sib xyaw ua ntej.
lub zeem muag ntawm lub neej yav tom ntej
Tsim kom muaj cov chaw tsim khoom zoo ntawm cov pob zeb ntsuab sib xyaw cov nroj tsuag
txoj haujlwm
Siv cov pa roj carbon tsawg los tsim lub neej zoo rau tib neeg
system ntawm tus nqi
Kev ris txiaj, kev sib koom, kev pabcuam, kev phooj ywg, kev mob siab rau, kev zoo, thiab xav paub.
tuam txhab philosophy
tuam txhab philosophy
Kev ncaj ncees, kev tshawb nrhiav, kev tsim kho tshiab, kev tawg, thiab kev tsim
